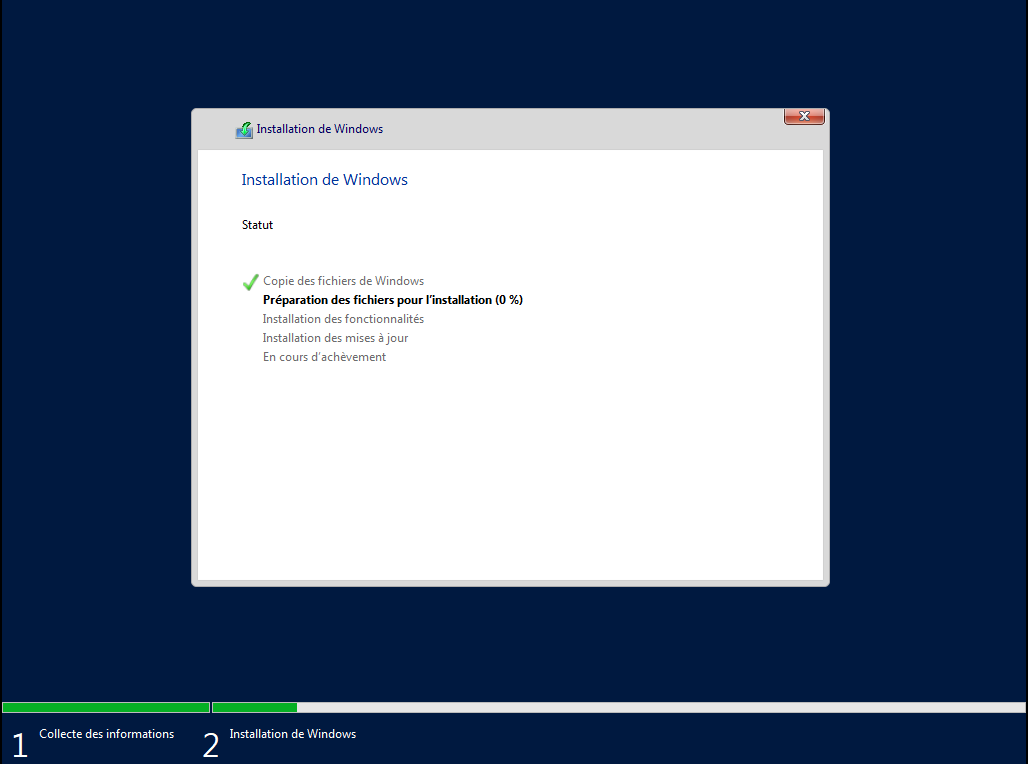

> For the complete documentation index, see [llms.txt](https://jeanpeyremesmots.gitbook.io/home/llms.txt). Markdown versions of documentation pages are available by appending `.md` to page URLs; this page is available as [Markdown](https://jeanpeyremesmots.gitbook.io/home/jpmm-en/system-administration/active-directory/decouverte-et-mise-en-place/1-installation-et-configuration.md). # 1 - Installation and configuration Setting up the server First, I install Windows Server 2019 locally on my machine. I chose VMware as the hypervisor: I find it makes creating separate subnets easier, and it handles resources more efficiently 🙂 We start by downloading the Windows Server 2019 ISO: Then we install it in a new virtual machine:

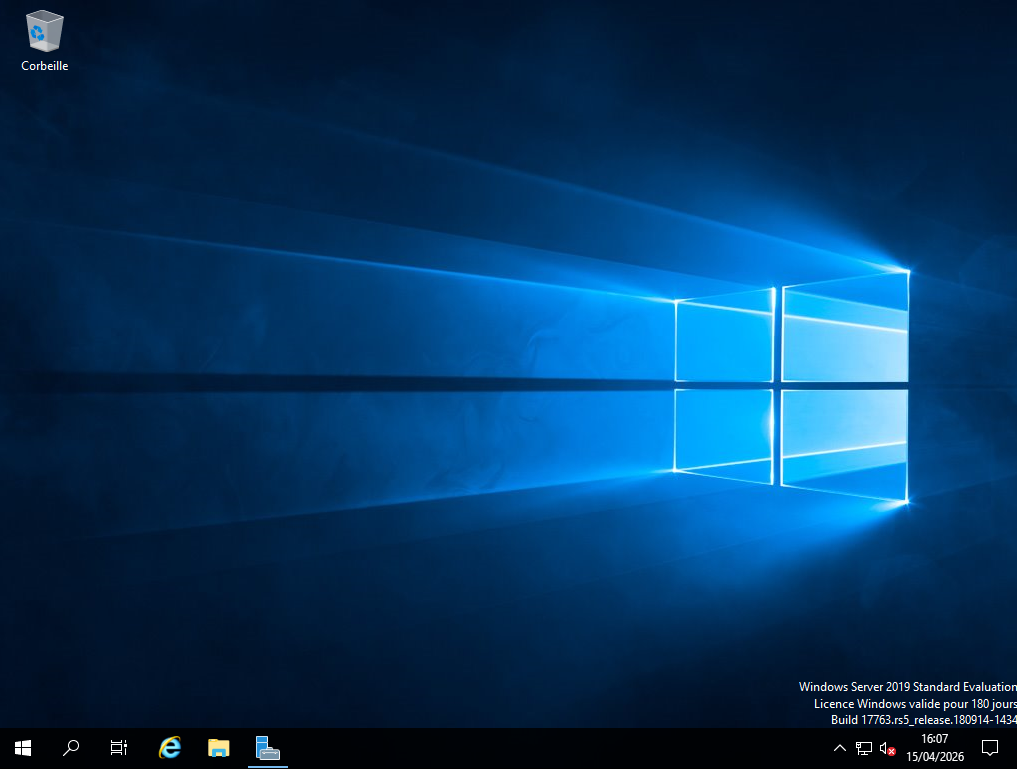

Once VMware Tools is installed and fullscreen works, we now have our Windows Server up and running:

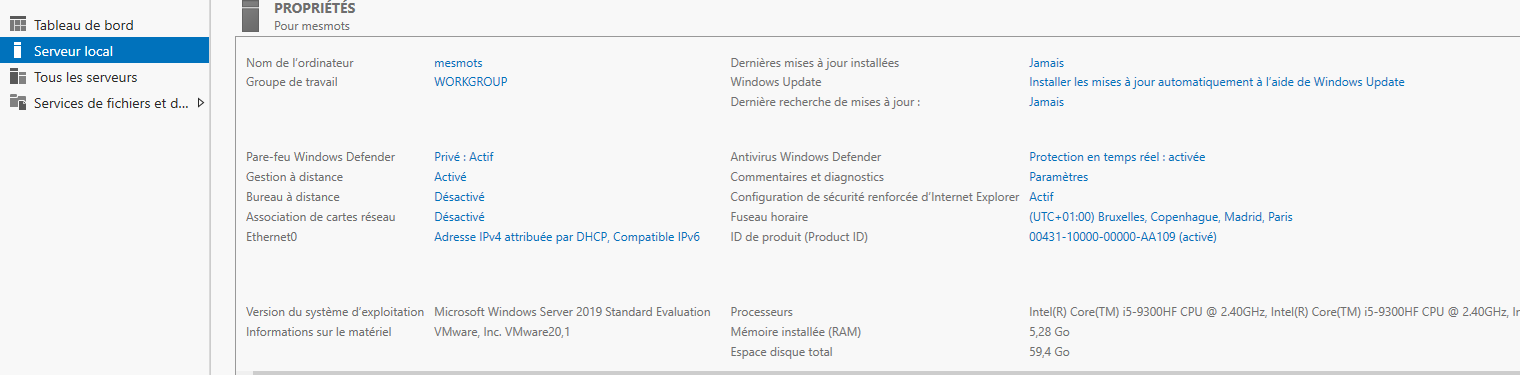

We rename the server to "**mesmots**", with the description "Serveur AD MesMots":

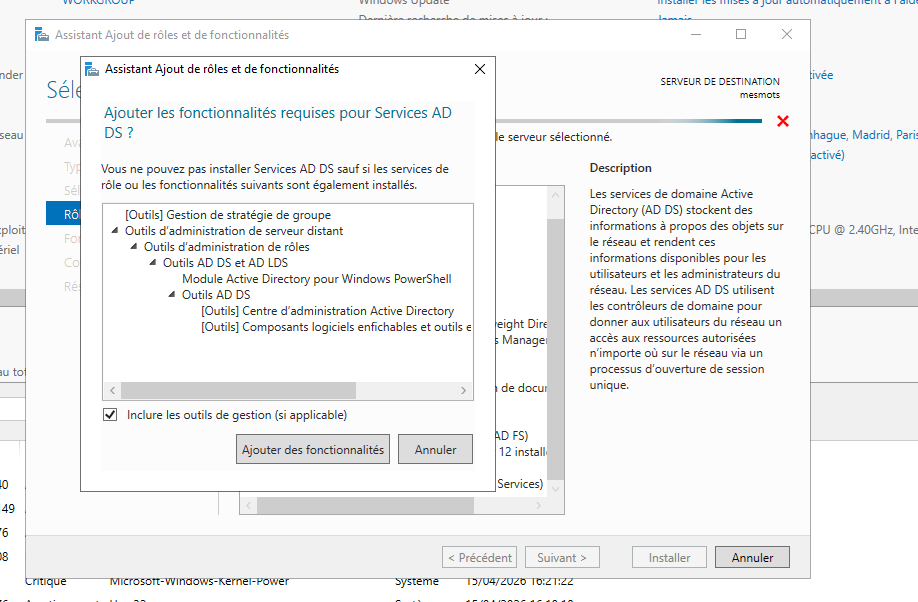

### Creating the domain: The first step, before creating the Active Directory domain, is to install the "**ADDS**" role: **Active Directory Domain Services**. This role is what makes it possible to create an Active Directory domain:

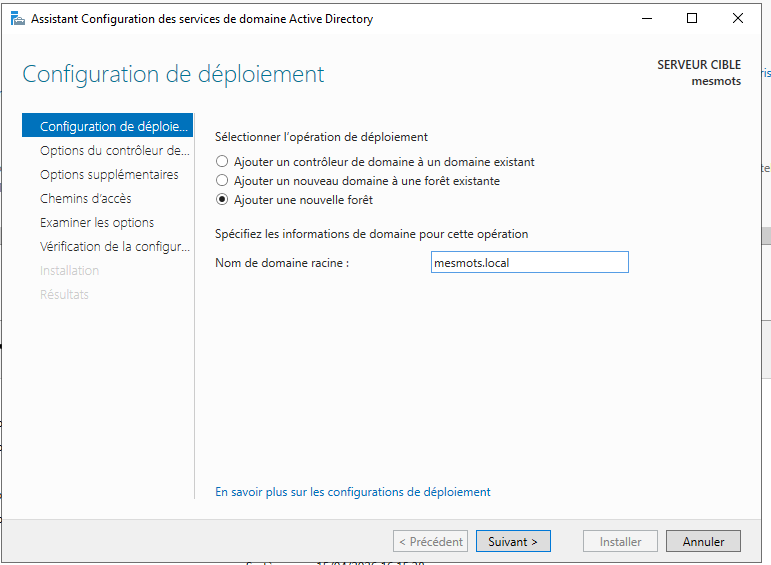

We then promote the server to a DC, with the domain name "**mesmots.local**":

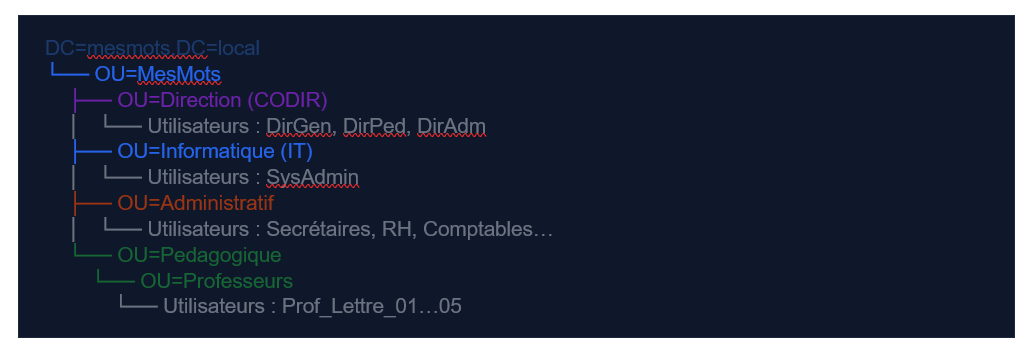

**Note:** the NetBIOS domain name will be **MESMOTS0** ### Creating the OUs: Once the domain is created, we can start creating the requested OUs, with the following tree:

We end up with the following OUs, each containing the members of its group: ```rust mesmots.local ├── Domain Controllers └── OU MesMots ├── OU CODIR ├── OU IT ├── OU Administratif ├── OU Pédagogique │ └── OU Professeurs └── OU Ordinateurs ``` Here is the complete tree, with each user belonging to a group named "**GRP\_CODIR**", "**GRP\_ADMIN**"... depending on the name of the OU: ```rust mesmots.local ├── OU Domain Controllers │ └── DN : OU=Domain Controllers,DC=mesmots,DC=local │ ├── OU MesMots │ ├── OU CODIR │ │ └── DN : OU=CODIR,OU=MesMots,DC=mesmots,DC=local │ │ ├── DirGen (dirgen) → GRP_CODIR │ │ ├── DirPed (dirped) → GRP_CODIR │ │ └── DirAdm (diradm) → GRP_CODIR │ │ │ ├── OU IT │ │ └── DN : OU=IT,OU=MesMots,DC=mesmots,DC=local │ │ └── SysAdmin (sysadmin) → GRP_IT │ │ │ ├── OU Administratif │ │ └── DN : OU=Administratif,OU=MesMots,DC=mesmots,DC=local │ │ ├── Alice Martin (amartin) → GRP_ADMIN │ │ ├── Bernard Dupont (bdupon) → GRP_ADMIN │ │ ├── Camille Laurent (claurent) → GRP_ADMIN │ │ ├── Dylan Moreau (dmoreau) → GRP_ADMIN │ │ ├── Eva Rousseau (erousse) → GRP_ADMIN │ │ ├── Fabien Garnier (fgarnie) → GRP_ADMIN │ │ ├── Gaëlle Marchal (gmarc) → GRP_ADMIN │ │ ├── Hugo Peyre (hpeyre) → GRP_ADMIN │ │ ├── Inès Chambon (ichamb) → GRP_ADMIN │ │ ├── Julien Blanchet (jblanch) → GRP_ADMIN │ │ ├── Karine Lemoine (klemon) → GRP_ADMIN │ │ ├── Luc Morel (lmorel) → GRP_ADMIN │ │ ├── Mélanie Aubert (maubert) → GRP_ADMIN │ │ ├── Nathan Roy (nroy) → GRP_ADMIN │ │ └── Olivia Dufour (odufour) → GRP_ADMIN │ │ │ ├── OU Pedagogique │ │ └── DN : OU=Pedagogique,OU=MesMots,DC=mesmots,DC=local │ │ └── OU Professeurs │ │ └── DN : OU=Professeurs,OU=Pedagogique,OU=MesMots,DC=mesmots,DC=local │ │ ├── Prof_Lettre_01 (pflettre01) → GRP_PROFS │ │ ├── Prof_Lettre_02 (pflettre02) → GRP_PROFS │ │ ├── Prof_Lettre_03 (pflettre03) → GRP_PROFS │ │ ├── Prof_Lettre_04 (pflettre04) → GRP_PROFS │ │ └── Prof_Lettre_05 (pflettre05) → GRP_PROFS │ │ │ └── OU Ordinateurs │ └── DN : OU=Ordinateurs,OU=MesMots,DC=mesmots,DC=local ``` ### Creating the shared disk When I tried to create the folder hierarchy on the "**D:**" drive, I realized the server didn't have one. So I had to add a dedicated partition on a new virtual hard disk. I created a "**.vmdk**" virtual disk in VMware, named "**partage\_commun.vmdk**":

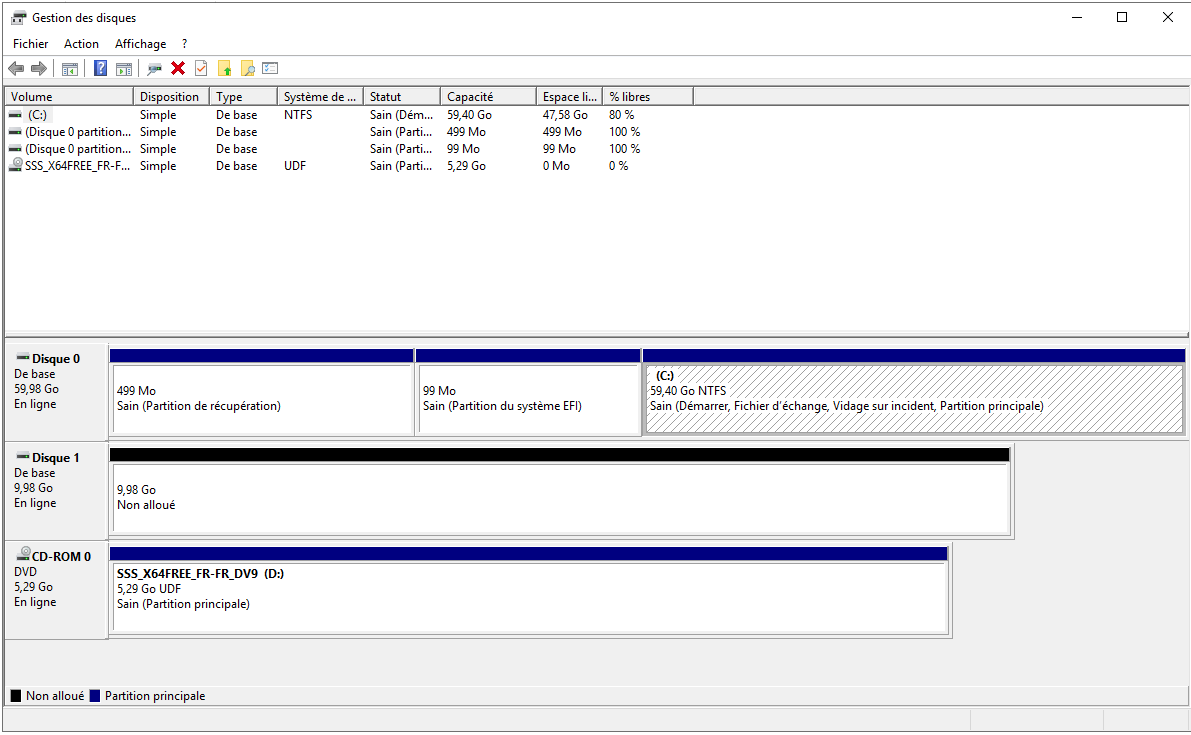

Once the disk is created, we open "**diskmgmt.msc**" on the AD server, and the disk shows up:

The disk is then mounted as **D:/**. We create a folder named "**Partages**" on it, then build a folder structure mirroring the OUs. Here is the directory listing: ```powershell PS C:\Users\Administrateur> cd D:\Partages PS D:\Partages> ls Répertoire : D:\Partages Mode LastWriteTime Length Name ---- ------------- ------ ---- d----- 15/04/2026 20:02 ADMINISTRATIF d----- 15/04/2026 20:02 COMMUN d----- 15/04/2026 20:02 DIRECTION d----- 15/04/2026 20:02 INFORMATIQUE d----- 15/04/2026 20:20 PEDAGOGIQUE PS D:\Partages> ls .\PEDAGOGIQUE\ Répertoire : D:\Partages\PEDAGOGIQUE Mode LastWriteTime Length Name ---- ------------- ------ ---- d----- 15/04/2026 20:20 Profs ``` The lab refers to **X:**, **P:**, etc. as drives mapped on the clients. Following that model, I assigned the following letters: * **X:** = SMB share pointing to "**D:\Partages**" (root) * **P:** = SMB share pointing to "**D:\Users{Username}**" ### Creating the share: First, we can see that the File Server role is already installed on the DC:

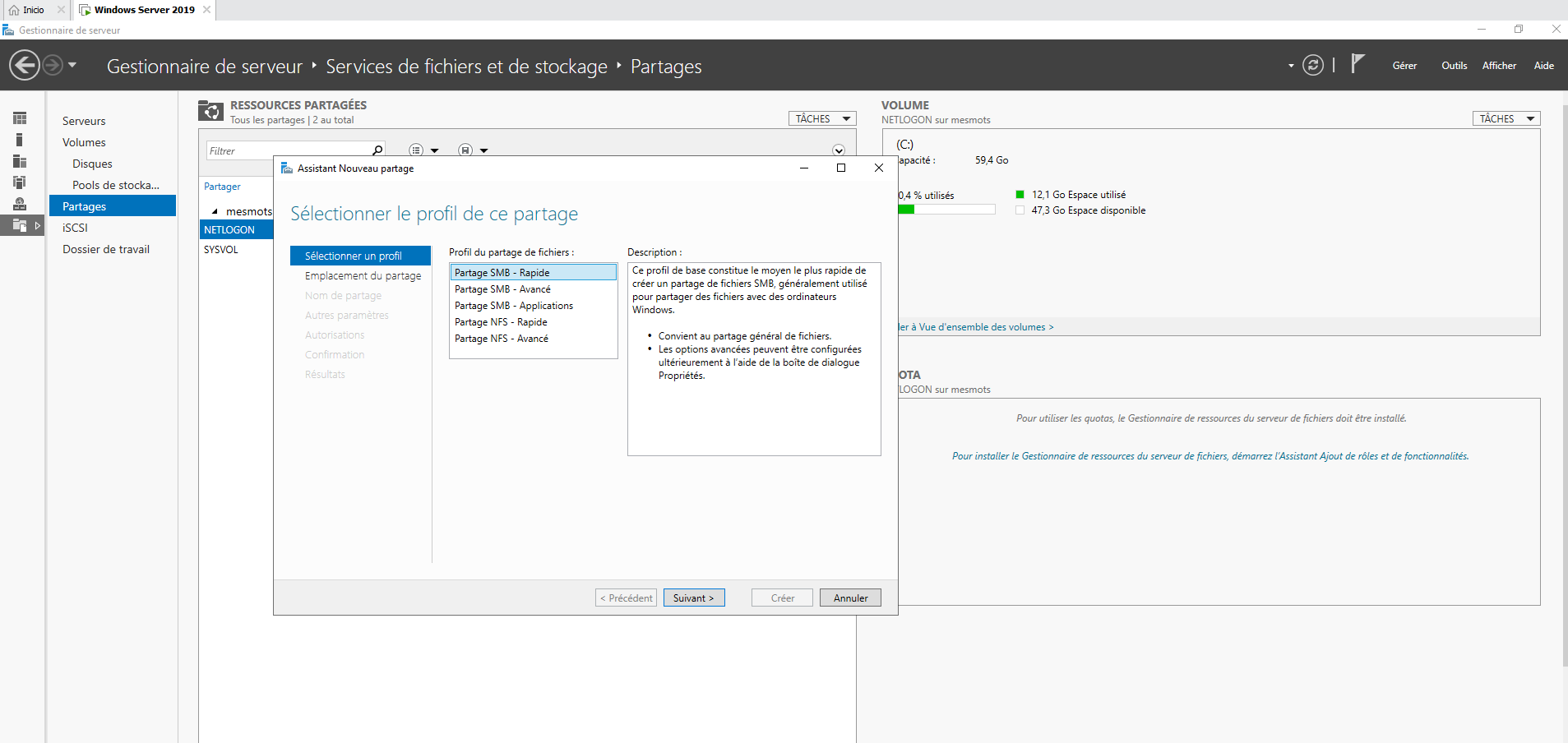

In the file share creation wizard, we can point the share to "**D:/Partages**":

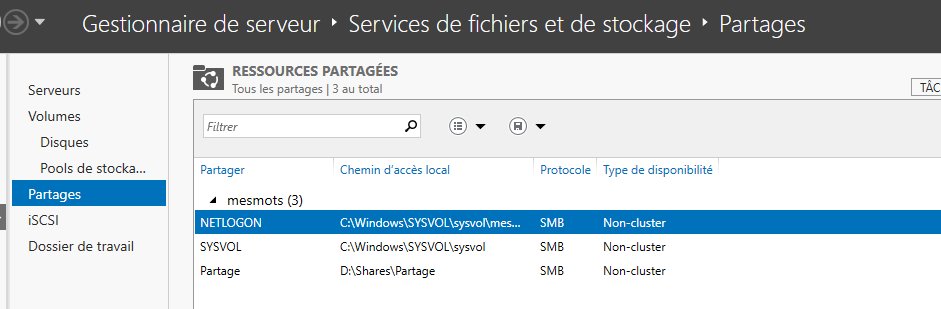

The share is created, and is now visible in the list of shares:

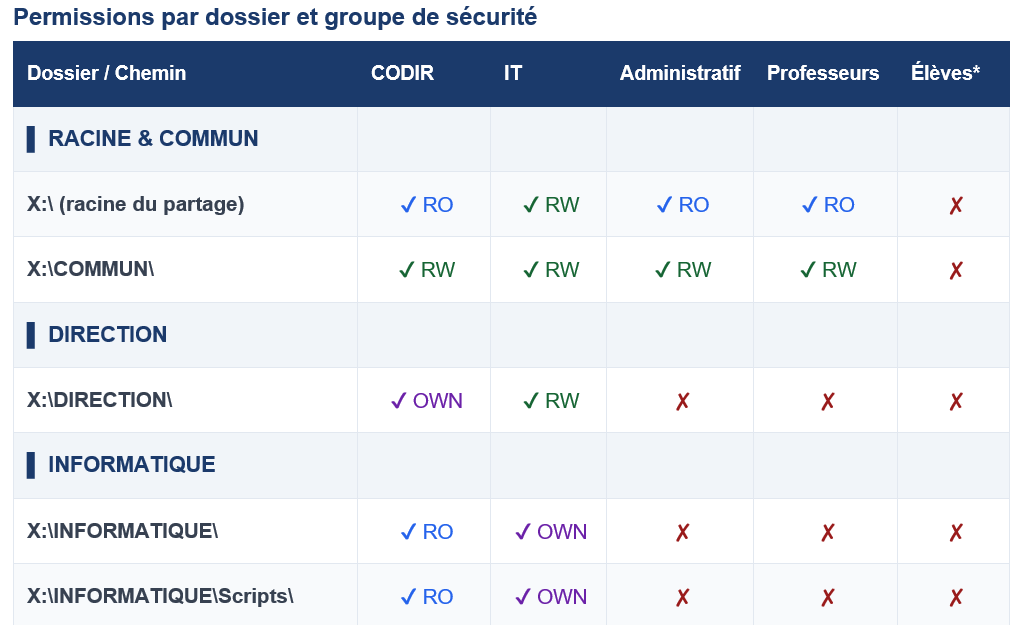

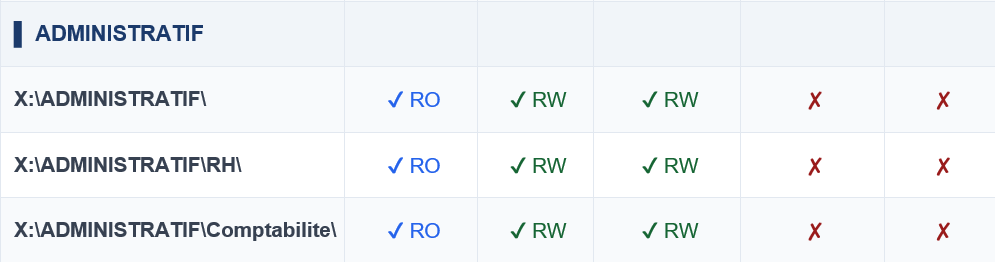

*Note: permissions were left at their defaults, as they will be changed later using the AGLP method* ### Defining the share permissions: The lab came with a permissions matrix defining who can access what, for each group. Here are some extracts:

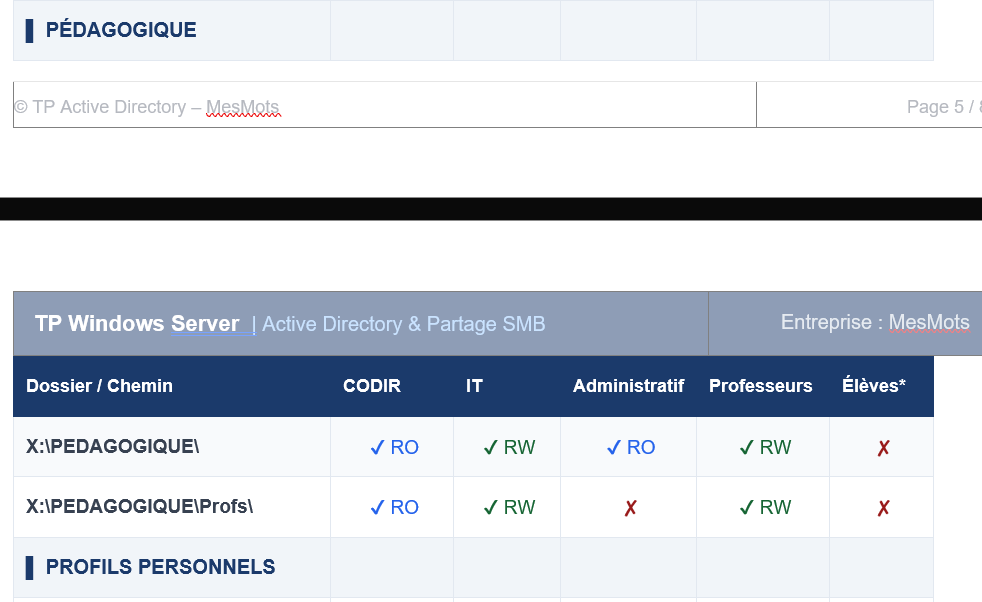

And for the other groups:

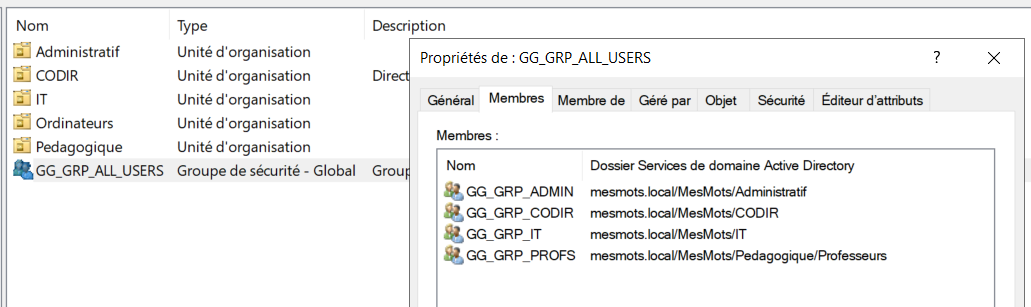

Important detail: each user is the owner (OWN) of their own folder only. IT keeps Read+Write on all folders for maintenance. First, I create a global group "**GG\_GRP\_ALL\_USERS**" that contains all the other user groups:

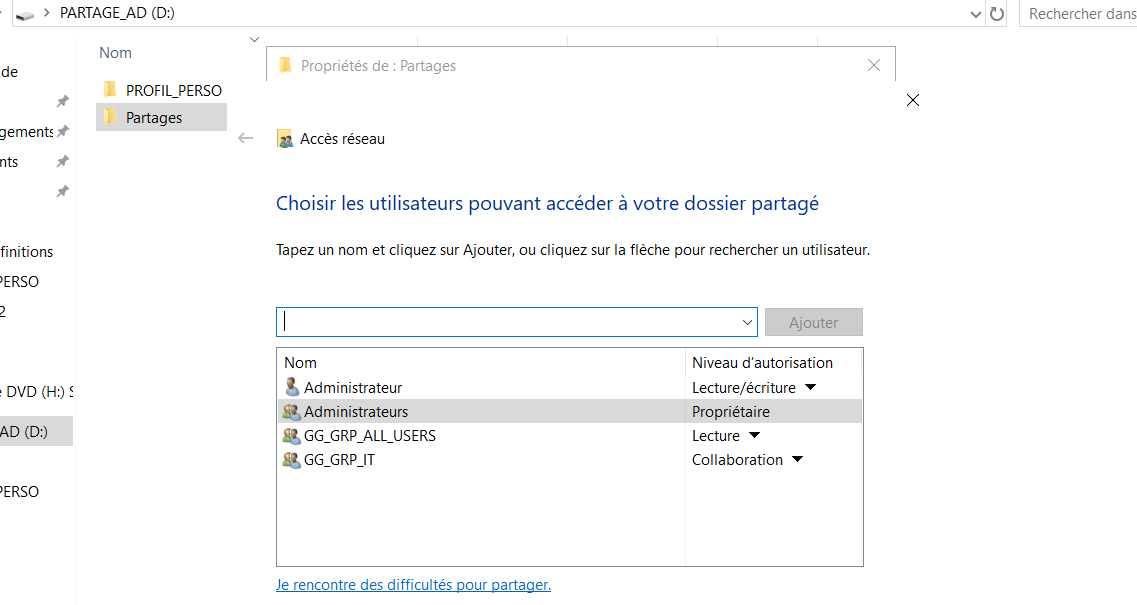

Then we grant this group read access on the "**D:/Partages**" folder created earlier. This grants effective SMB access, which is then refined with NTFS permissions:

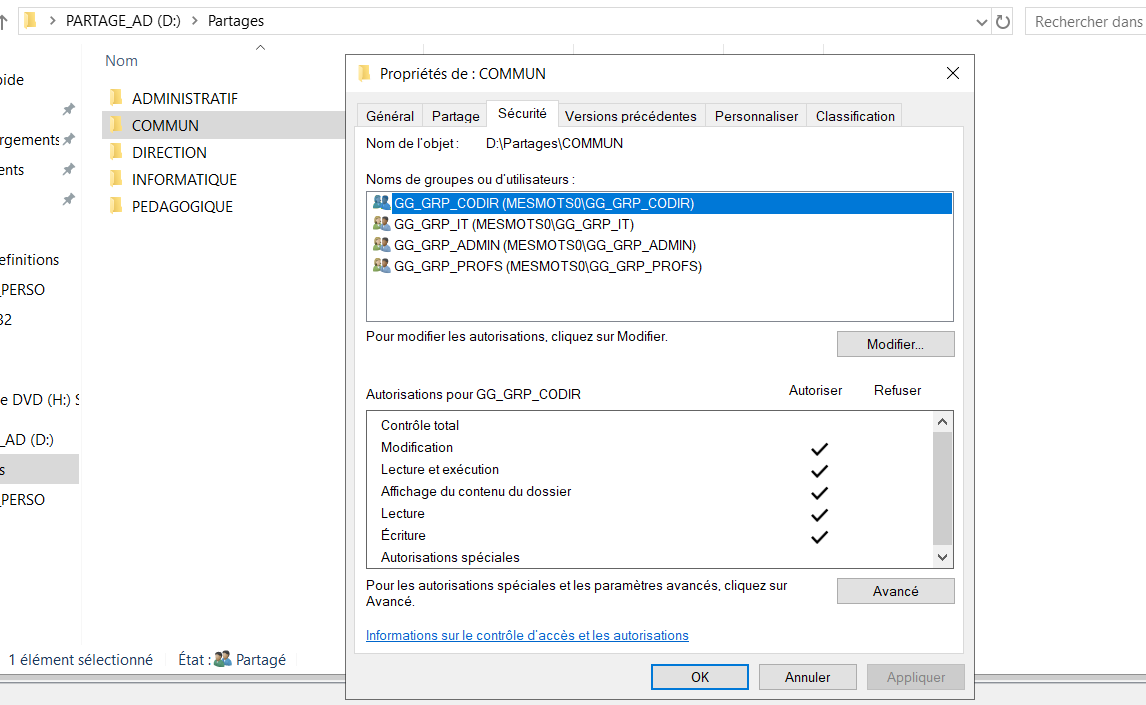

NTFS permissions can be set by right-clicking a subfolder of the "**D:/Partages**" share. For example, to set the right permission on the "COMMUN" subfolder, we right-click > Properties > Advanced at the bottom right:

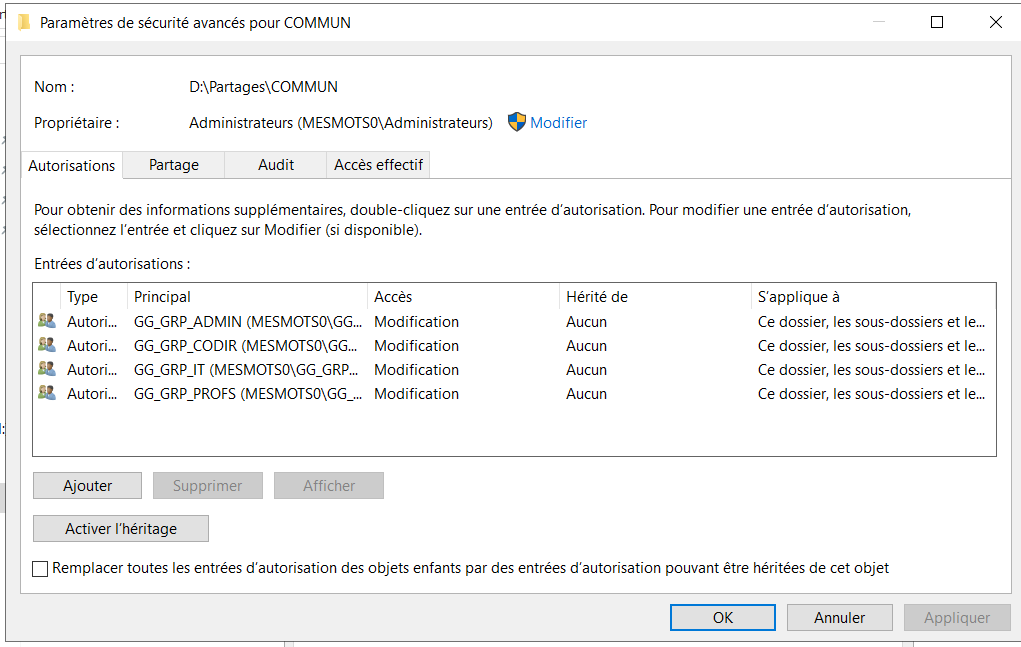

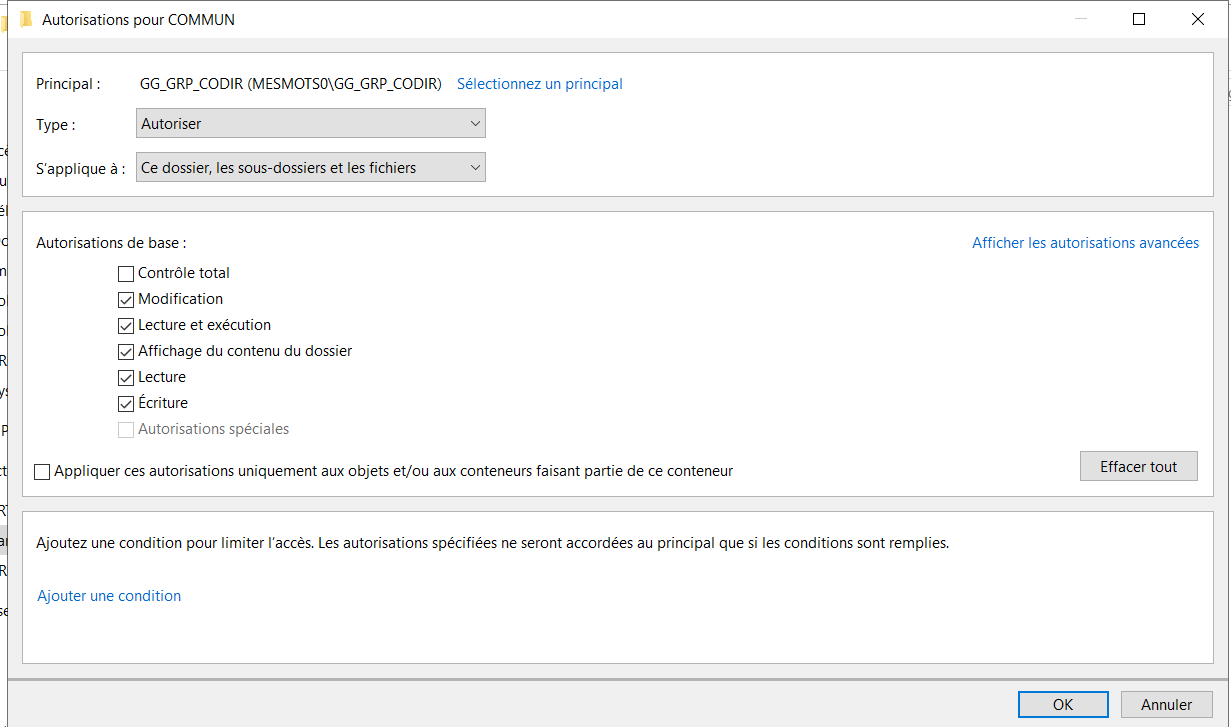

Then we can apply the NTFS permissions by adding each desired group and ticking the permission boxes:

We then set the required permissions for each group on each folder. Here is the resulting PowerShell listing ;) : ```ps1 # Dossier : ADMINISTRATIF Utilisateur Droits Hérité ----------- ------ ------ GG_GRP_ADMIN Modify False GG_GRP_CODIR ReadAndExecute False GG_GRP_IT Modify False # Dossier : COMMUN Utilisateur Droits Hérité ----------- ------ ------ GG_GRP_ADMIN Modify False GG_GRP_CODIR Modify False GG_GRP_IT Modify False GG_GRP_PROFS Modify False # Dossier : DIRECTION Utilisateur Droits Hérité ----------- ------ ------ GG_GRP_CODIR FullControl False GG_GRP_IT Modify False # Dossier : INFORMATIQUE Utilisateur Droits Hérité ----------- ------ ------ GG_GRP_CODIR ReadAndExecute False GG_GRP_IT FullControl False # Dossier : PEDAGOGIQUE Utilisateur Droits Hérité ----------- ------ ------ GG_GRP_ADMIN ReadAndExecute False GG_GRP_CODIR ReadAndExecute False GG_GRP_IT Modify False GG_GRP_PROFS Modify ``` Each group now has exactly the permissions it needs on each folder, at a granular level, matching the permissions matrix. ### Configuring the Windows 11 client VM and the network Now that the server and the share are in place, we can create a Windows 11 VM on the same local network to simulate a client workstation. *Note: to be able to join the AD domain, it is essential to choose the "Pro" edition.* Once the VM is installed, I debloat Windows using [Sophia Script](https://github.com/farag2/Sophia-Script-for-Windows) to free up resources on my machine and get a lighter system:

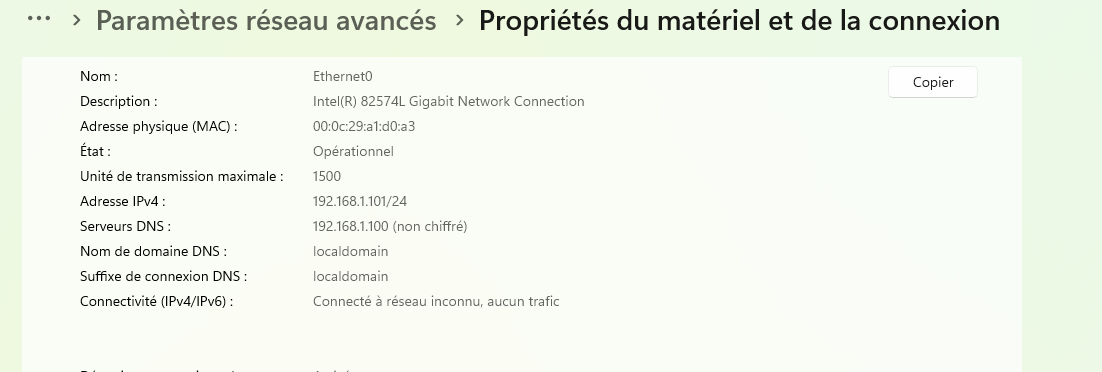

We then set the AD server's address, **192.168.1.100**, as the DNS server, which is required for the client to communicate with the domain:

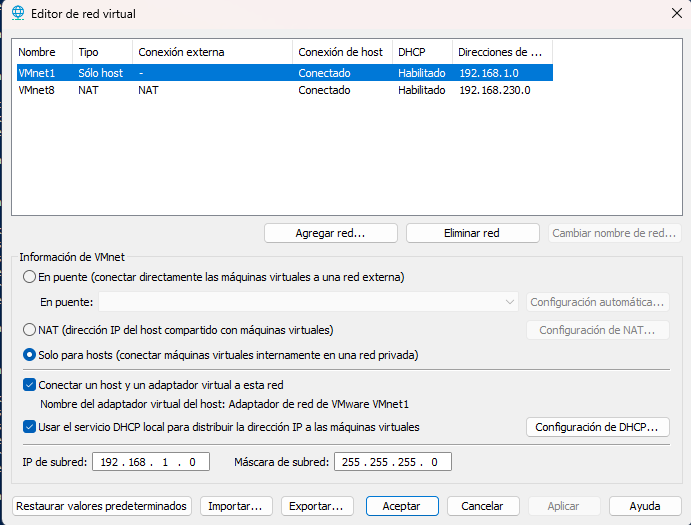

Next, we configure a virtual network ***vmnet1*** in VMware to set up a bridged connection between the Active Directory server and a Windows 11 VM, with a DHCP range from **192.168.1.100 to 192.168.1.254**:

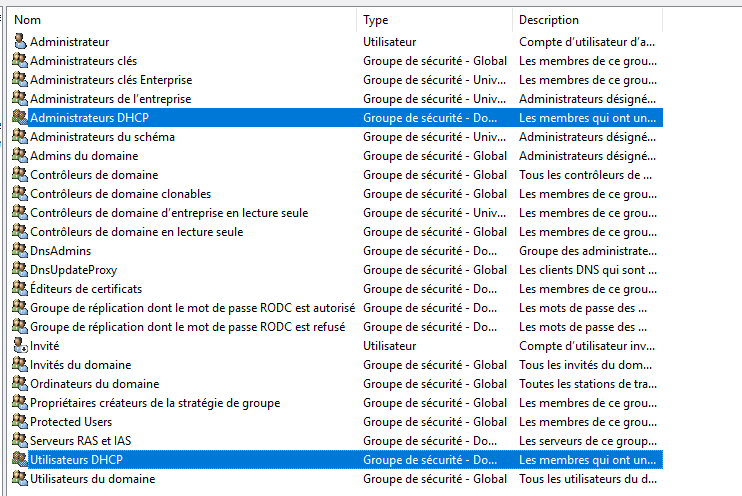

Then we install the DHCP server, following this guide (in French): We can then see that 2 users have been added to the group:

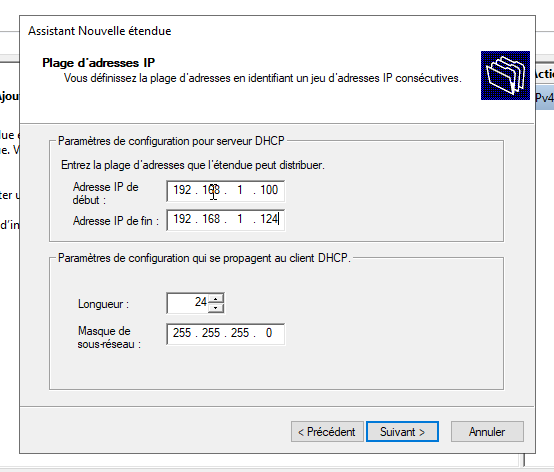

We then create a DHCP pool. In this example, the AD server has the IP address "**192.168.1.100**", configured statically. We will create a scope that distributes IP addresses from **192.168.1.100** to **124**, i.e. 24 IPv4 addresses, which is the number of employees of the fictional company! We name it "**LAN\_MesMots**":

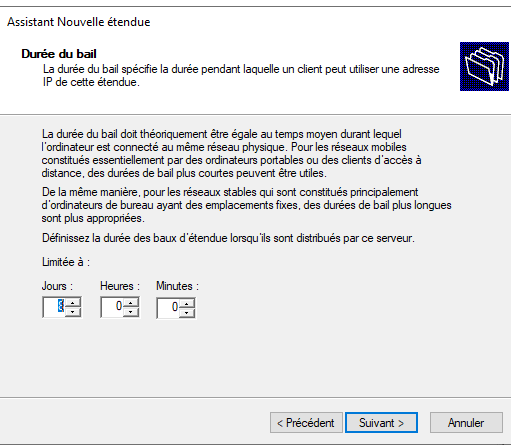

We then set the DHCP lease to 8 days, which is realistic for a corporate network:

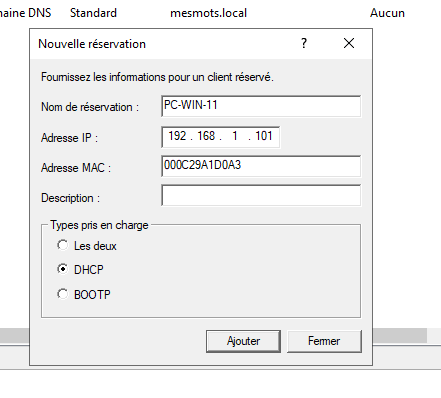

We can confirm it worked by checking the DHCP logs on the server, in "**C:\Windows\System32\dhcp**": ```powershell 55,04/26/26,16:53:39,Autorisé (en service),,mesmots.local,,,0,6,,,,,,,,,0 10,04/26/26,17:17:52,Assigner,192.168.1.101,WIN11-HOME-LAB.mesmots.local,000C29A1D0A3,,4172766725,0,,,,0x4D53465420352E30,MSFT 5.0,,,,0 ``` To go all the way, we can also reserve the IP of the Windows 11 PC:

Our **WIN-11** machine does get an IP address and the domain's DNS suffix: ```powershell PS C:\WINDOWS\system32> ipconfig /all Configuration IP de Windows Nom de l’hôte . . . . . . . . . . : WIN11-HOME-LAB Suffixe DNS principal . . . . . . : mesmots.local Carte Ethernet Ethernet0 : Suffixe DNS propre à la connexion. . . : mesmots.local Adresse IPv4. . . . . . . . . . . . . .: 192.168.1.101(préféré) Masque de sous-réseau. . . . . . . . . : 255.255.255.0 Bail obtenu. . . . . . . . . . . . . . : dimanche 26 avril 2026 17:17:52 Bail expirant. . . . . . . . . . . . . : lundi 4 mai 2026 17:17:52 Passerelle par défaut. . . . . . . . . : 192.168.1.254 Serveur DHCP . . . . . . . . . . . . . : 192.168.1.100 Serveurs DNS. . . . . . . . . . . . . : 192.168.1.100 NetBIOS sur Tcpip. . . . . . . . . . . : Activé ``` Both machines can reach each other, and the domain answers on 192.168.1.100: ```powershell PS C:\> ping mesmots.local ``` ``` Réponse de 192.168.1.100 : octets=32 temps<1ms TTL=128 Paquets : envoyés=4, reçus=4, perdus=0 (perte 0%) ``` Then the reverse DNS lookup: ```powershell PS C:\> nslookup 192.168.1.100 ``` ``` Serveur : UnKnown Address: 192.168.1.100 ``` And AD authentication: ```powershell PS C:\> nltest /dsgetdc:mesmots.local ``` ``` Contrôleur de domaine : \\mesmots.mesmots.local Adresse : \\192.168.1.100 Nom dom : mesmots.local Indicateurs : PDC GC DS LDAP KDC TIMESERV ... La commande a été correctement exécutée. ``` Our DC is detected and reachable! ✅
